ISO9001 and ISO14001 Certified Threaded Brass Pressure Reducing Valve with 18 Months Warranty for Water Steam and Oil Applications

Einzelheiten zum Produkt

Herkunftsort: CHINA

Markenname: JGPV

Zahlungs- und Versandbedingungen

Min Bestellmenge: 1Set

Verpackung Informationen: Sperrholzbox -Sicherheitspackung

Lieferzeit: 14 Tage

Zahlungsbedingungen: L/C, T/T, Western Union

Versorgungsmaterial-Fähigkeit: 500 Set pro Monat

Beste Preis

Einzelheiten zum Produkt

Beschreibung des Produkts

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                ISO9001 Certified Pressure Reducing Valve, ISO14001 Certified Water Pressure Regulator, 18 Months Warranty Pressure Control Valve


Anwendung::	Allgemein	Zertifikat::	ISO9001, ISO14001
Mittlerer Typ::	Wasser, Dampf und Öl usw.	Verbindung::	Gewinde / Flansch / geschweißt
Standard oder nicht standardmäßig::	Standard	Flussweg::	Zwei Wege
Betätigung::	Handbuch, elektrisch, pneumatisch, automatisch	Versiegelungsleistung::	Versiegelung
Arbeitstemperatur::	Normale Temperatur und hohe Temperatur	Druckanwendung::	Normaler Druck
Qualitätsgarantie::	18 Monate

Anwendung::	Allgemein
Zertifikat::	ISO9001, ISO14001
Mittlerer Typ::	Wasser, Dampf und Öl usw.
Verbindung::	Gewinde / Flansch / geschweißt
Standard oder nicht standardmäßig::	Standard
Flussweg::	Zwei Wege
Betätigung::	Handbuch, elektrisch, pneumatisch, automatisch
Versiegelungsleistung::	Versiegelung
Arbeitstemperatur::	Normale Temperatur und hohe Temperatur
Druckanwendung::	Normaler Druck
Qualitätsgarantie::	18 Monate

ISO9001 and ISO14001 Certified Threaded Brass Pressure Reducing Valve with 18 Months Warranty for Water Steam and Oil Applications

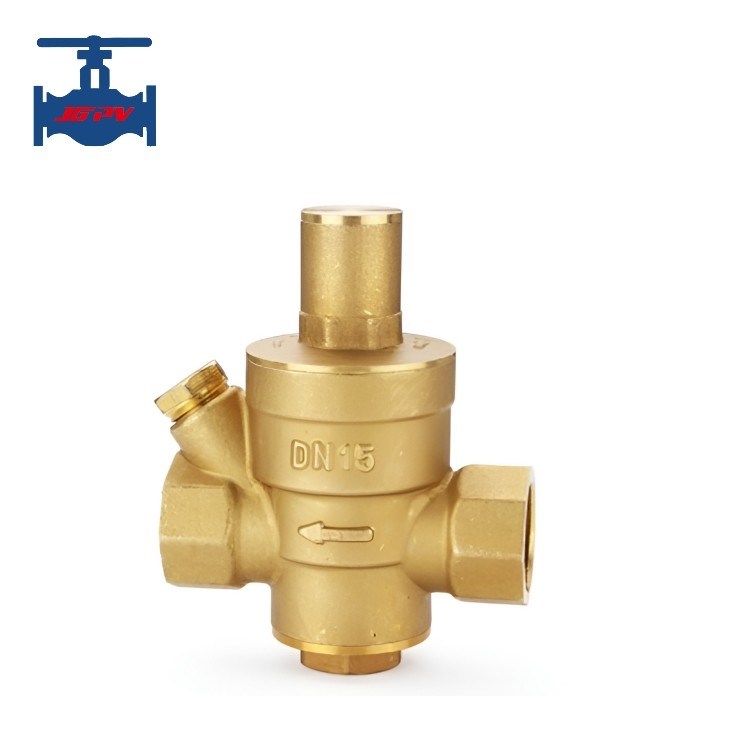

Threaded Brass Material Pressure Reducing Valve

Threaded brass material pressure reducing valve

Product Introduction

The water pressure reducing valve produced by our professional manufacturer is mainly used in various building water supply systems, fire fighting systems, central air conditioning systems, heating systems, etc. It is used for branch pipeline pressure reduction, which can make the water supply pressure distribution more balanced, avoid partial water supply over-pressure, and optimize the water supply division of high-rise buildings. It can replace the frequency modulation variable speed pump in the partition, and can replace the partition pump in the fire water supply system, and used in domestic water supply system to protect all taps and other water appliances.

Product Technical Parameters

Parts	Raw Material
Valve body and bonnet	Brass
Bottom cover	Brass
Sealing	NBR
Valve disc	Brass
Adjusting screw	Brass
Diaphragm	NBR braided sandwich
Spring	60si2mna plate with nickel
Adjusting nut	Brass
Diaphragm flat pad	Brass

Product Features

Frost damage, in cold areas should pay attention to insulation
The water flow direction is wrong, the pressure reducing valve becomes a check valve, and the outlet pressure is 0
If the spring is too tight to close, the pressure reducing valve will pass through P2 = P1
The leakage of the bypass pipe makes P2 deviate from the set value. In view of the superior reliability and durability of the pressure reducing valve, it is recommended not to install the bypass valve
