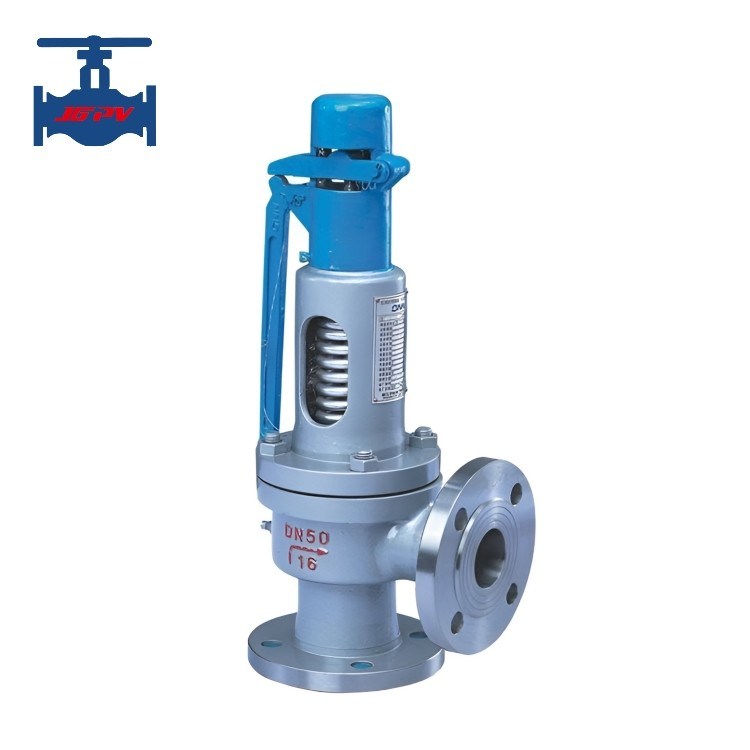

Cast Steel and Stainless Steel Automatic Pilot Operated Safety Valve with DN15-DN300 Port Size for Up to 300°C Working Temperature

Name: Cast Steel and Stainless Steel Automatic Pilot Operated Safety Valve with DN15-DN300 Port Size for Up to 300°C Working Temperature
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: A42H-16C
Price: 2,169.90 USD
Availability: InStock

Einzelheiten zum Produkt

Herkunftsort: China

Markenname: JGPV

Modellnummer: A42H-16C

Zahlungs- und Versandbedingungen

Min Bestellmenge: 1 SATZ

Preis: USD49.9/pc - USD4289.9

Verpackung Informationen: Sperrholzbox -Sicherheitspackung

Lieferzeit: 14 Tage

Zahlungsbedingungen: L/C, T/T, Western Union

Versorgungsmaterial-Fähigkeit: 1000 Stück pro Monat

Beste Preis

Einzelheiten zum Produkt

Beschreibung des Produkts

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                Cast steel automatic safety valve, Stainless steel pilot operated valve, DN15-DN300 safety valve 300°C


Standard oder nicht standardmäßig:	Standard	Anwendung:	Allgemein
Produkthaltung:	Industrielles Ventil	Zweck:	Überdruckschutz
Mittlerer Typ:	Luft, Wasser, Dampf, Öl und Erdgas usw.	Arbeitstemperatur:	Bis zu 300 Grad Celsius
Nenndruck:	Niedrige, mittlere und hohe Temperaturen	Fertigungshandwerk:	Casting
Portgröße:	DN15-DN300	Qualitätsgarantie:	18 Monate
Name:	Sicherheitsventil

Standard oder nicht standardmäßig:	Standard
Anwendung:	Allgemein
Produkthaltung:	Industrielles Ventil
Zweck:	Überdruckschutz
Mittlerer Typ:	Luft, Wasser, Dampf, Öl und Erdgas usw.
Arbeitstemperatur:	Bis zu 300 Grad Celsius
Nenndruck:	Niedrige, mittlere und hohe Temperaturen
Fertigungshandwerk:	Casting
Portgröße:	DN15-DN300
Qualitätsgarantie:	18 Monate
Name:	Sicherheitsventil

Cast Steel and Stainless Steel Automatic Pilot Operated Safety Valve with DN15-DN300 Port Size for Up to 300°C Working Temperature

Automatic Pilot Operated Safety Valve

Product Overview

Cast Steel And Stainless Steel Automatic Pilot Operated Safety Valve

Pilot operated safety valve is a type of non direct load safety valve composed of a main valve and a pilot valve (also known as a "secondary valve"). The main valve is driven by the medium discharged from the pilot valve. Due to the pulse form of pressure in the system, it is also known as a "pulse safety valve".

This automatic valve category is mainly used on boilers, pressure vessels, and pipelines to control pressure not exceeding specified values, providing important protection for personal safety and equipment operation.

Technical Specifications

Parameter	Specification
Nominal diameter DN(mm)	DN15-DN300
Nominal pressure PN(MPa)	1.0-32.0
Strength test (Water)	1.5 times of pressure nominal
Set pressure test (Air)	0.9 times of pressure nominal
Main components - Body	WCB, CF8, CF8M, CF3, CF3M
Main components - Bonnet	WCB, CF8, CF8M, CF3, CF3M
Main components - Disc	WCB, CF8, CF8M, CF3, CF3M
Main components - Spring	50CrVA
Main components - Stem	WCB, CF8, CF8M, CF3, CF3M
Applicable medium	Water, air, petroleum gas and weak corrosive medium
Working temperature	≤300℃
Connection method	Flange connection

Product Features

Ideal for high-pressure and large-diameter applications
Excellent sealing performance
Minimal back pressure influence on operation
Available in micro opening and full opening configurations

Note: While offering superior sealing, pilot operated safety valves have more complex structures and may not respond as quickly as direct acting safety valves.
